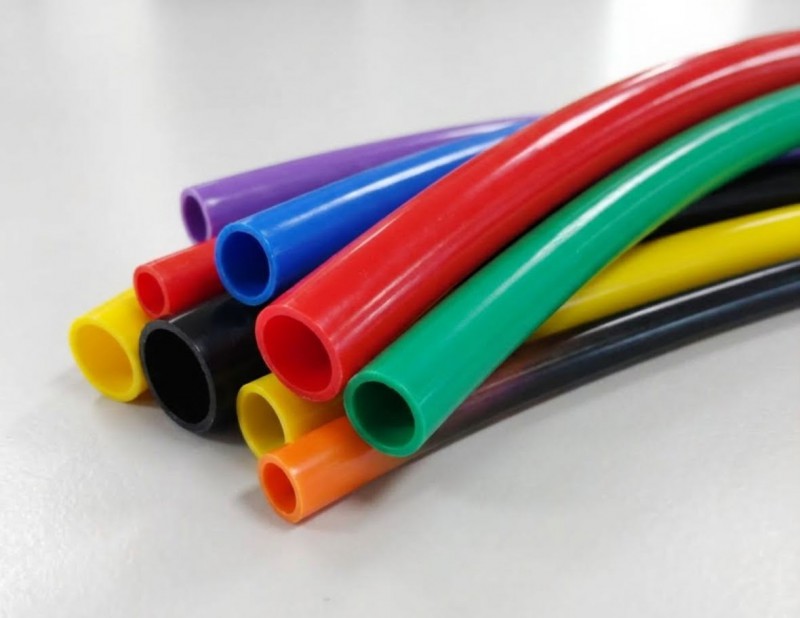

PVC 套管 NO UL PVC TUBE
˙材質: 聚氯乙烯(PVC)
˙溫度範圍: -10℃～80℃ or -20℃~105℃
˙耐電壓: 300V / 600V
˙特長: 耐電壓.絕緣性
˙用途:適用於汽機車電線接頭.電子零件.玩具.馬達.車燈線束器等接線頭的絕緣保護
˙專長:各種尺寸均可特殊生產
|
PVC塑膠管特性表
|
|
抗拉強度
|
Mpa
|
9±1
|
9.1
|
|
伸長率
|
%
|
250±50
|
230
|
|
加熱老化(100℃X48hrs)
|
|
a.硬度變化
|
Shore-A
|
±2
|
+1
|
|
b.抗拉強度變化率
|
%
|
-20
|
-20
|
|
c.伸長率變化率
|
%
|
-20
|
-20
|
|
規 格(內徑)A*外徑
|
壁厚B
|
公差
|
|
3*4MM
|
0.50
|
±0.10
|
|
4*5MM
|
0.50
|
±0.10
|
|
5*6MM
|
0.50
|
±0.10
|
|
6*7MM
|
0.50
|
±0.10
|
|
7*8MM
|
0.50
|
±0.10
|
|
8*9MM
|
0.50
|
±0.10
|
|
9*10MM
|
0.50
|
±0.10
|
|
10*11MM
|
0.50
|
±0.10
|
|
11*12MM
|
0.55
|
±0.12
|
|
12*13MM
|
0.55
|
±0.12
|
|
13*14MM
|
0.55
|
±0.12
|
|
14*15MM
|
0.55
|
±0.12
|
|
15*16 MM
|
0.60
|
±0.15
|
|
16*17 MM
|
0.60
|
±0.15
|
|
17*18 MM
|
0.60
|
±0.15
|
|
18*19 MM
|
0.60
|
±0.15
|
|
19 *20MM
|
0.60
|
±0.15
|
|
20*22 MM
|
1.00
|
±0.20
|
|
22*24 MM
|
1.00
|
±0.20
|

|
|
|
|
|
|
|
